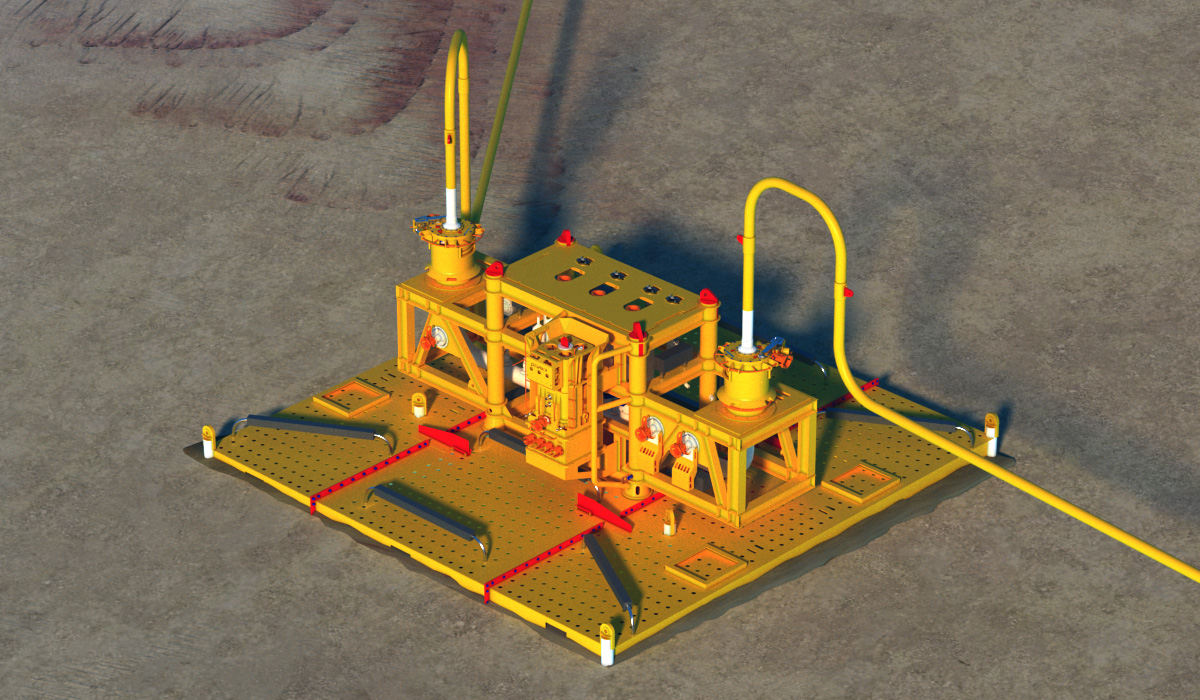

About Trendsetter’s HIPPS Module





Trendsetter’s High Integrity Pressure Protection System (HIPPS) design is a state-of-the-art, stand-alone pressure protection system. The HIPPS module can be located in the production flow path between the source pressure, like a production well, and standard subsea equipment such as the production manifold. This is to protect lower rated equipment downstream of the fortified zone.  In an event the internal pressure at the HIPPS module exceeds the trip point, which is predetermined based on the pressure ratings of the downstream equipment, the HIPPS module valves will then close, thereby preventing the over pressurization of the equipment downstream of the HIPPS module.

The HIPPS module can be rated up to 15,000 psi and provides an independent, fully autonomous, SIL3 rated means for protecting the lower-rated downstream sections. The compact design of the HIPPS module allows the deployment inside of a clustered drill center or other crowded area within a subsea development.

Trendsetter Engineering’s design process is built upon the requirements of ISO:9001 and industry best practices.

Features and Benefits of the HIPPS:



  • Designed, manufactured and tested to meet SIL3, API 17O and BSEE requirements for well based HIPPS modules
  • Rated for up to 15,000 psi
  • Equipped with Trendsetter Connection Systems to allow for easy field integration
  • Provides peace of mind with dual barrier well control
  • Provides an independent, fully autonomous means for protecting lower pressure downstream hardware
  • Later in the reservoir life, the HIPPS module may be locked open or recovered and re-purposed for future applications
  • Trendsetter can service the HIPPS worldwide and support offshore deployments

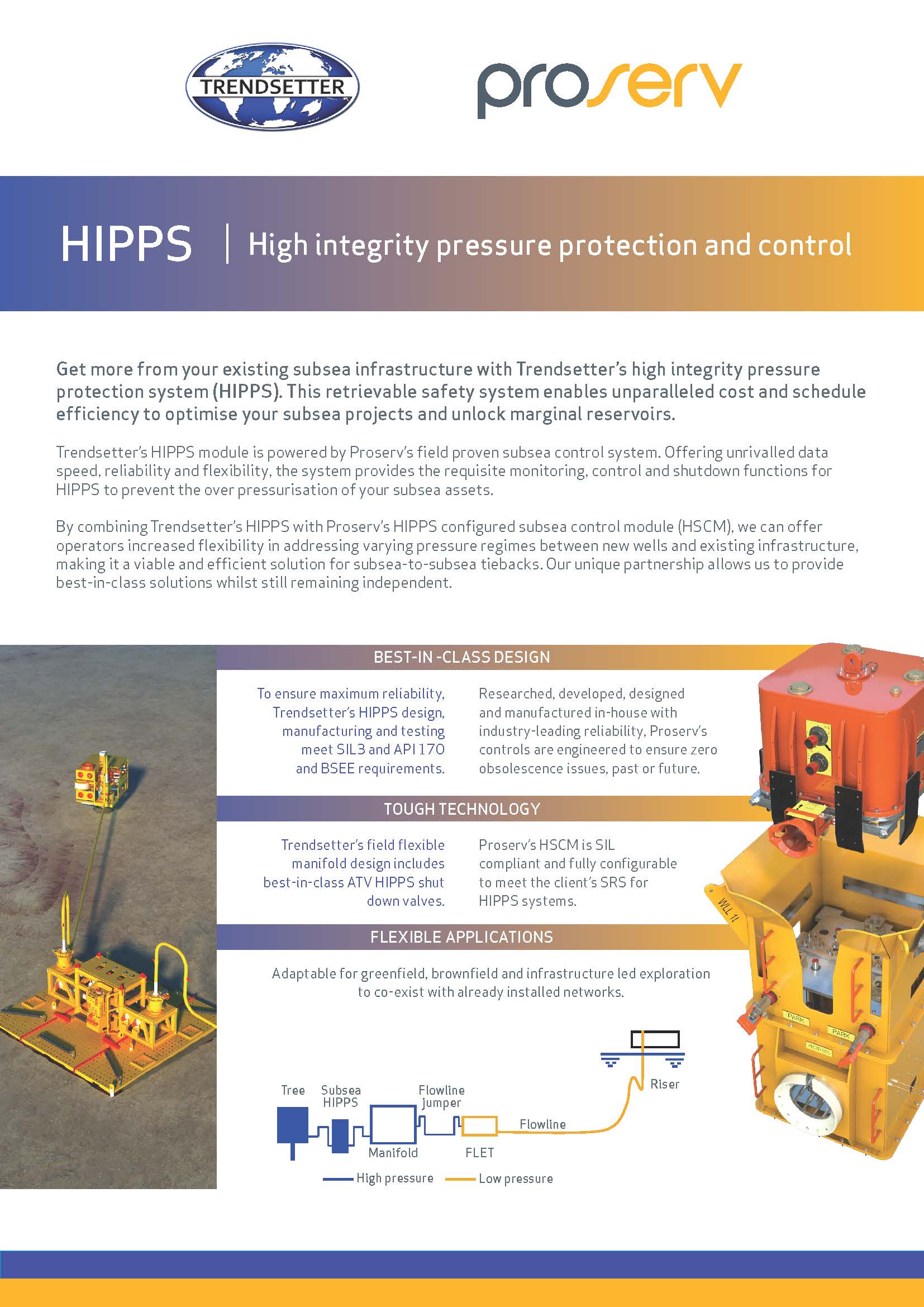

Download Data Sheet (PDF)



Specifications

Design Code API 17O
Maximum Water Depth Up to 10,000 ft
Rated Working Pressure Up to 15,000 psi
Product Specification Level PSL 3G
Design Life 30 years
HIPPS SIF Operation Life 5 years
Material Class EE/HH
Nominal Temperature Rating -20 to 250 deg. F
Control System Type

Proserv multiplexed electro-
hydraulic MUX system
