Dual Bore TCS

About Trendsetter’s Dual Bore Connection Systems

The Dual Bore TCS is a modular flow access solution that utilizes Trendsetter’s field proven connector and sealing technology.  While multibore technology has long existed, Trendsetter has improved on the design to make it viable for HPHT applications.  Leveraging Trendsetter’s HPHT capabilities, the Dual Bore TCS family offers multiple configurations for service up to 15,000psi and 400F.  Rigorous research and development ensured that the technology is equipped to handle the harshest subsea environments.

 With the ability to equip the connectors with true dual 3”, 5” and 7” bores, the Dual Bore TCS is a robust and versatile foundation for Flowmeter Modules, High Integrity Pressure Protection Systems and other connector mounted packages, something no other multibore connector in the industry can do.  Like the award winning TCS, the Dual Bore TCS is designed and manufactured in the Houston, Texas to ensure exceptional quality control and project responsiveness.

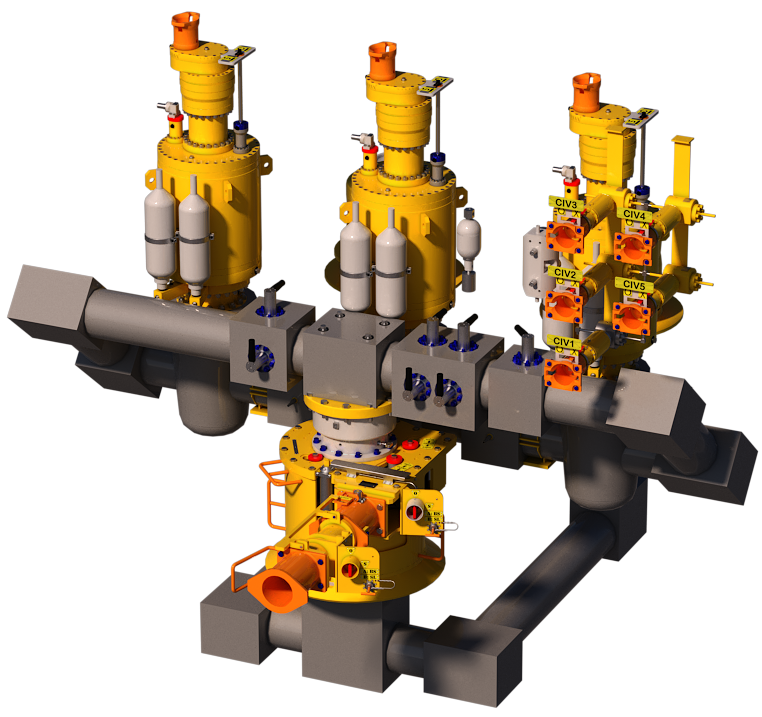

The Dual Bore TCS w/ Wet Gas Flow Meter

Features and Benefits of the Dual Bore Connector:

• Flow meter module designed to facilitate a variety of subsea meters and instrumentation requirements

• Offers true dual 3", 5” or 7” bore configurations dual bore system that mates with a single TCS Clamp Connection System.

• Utilizes dual, MTM TEX gaskets with independent back seal capability

• Simple integration onto subsea structures

• Designed and manufactured in the Houston area for exceptional quality control and project responsiveness

Click here to learn more about the Trendsetter Connection System.
